Fixtures
Hydraulic, pneumatic, and mechanical fixtures built to hold tight tolerances under production loads — through to complete turnkey solutions.
Overview
About Fixtures

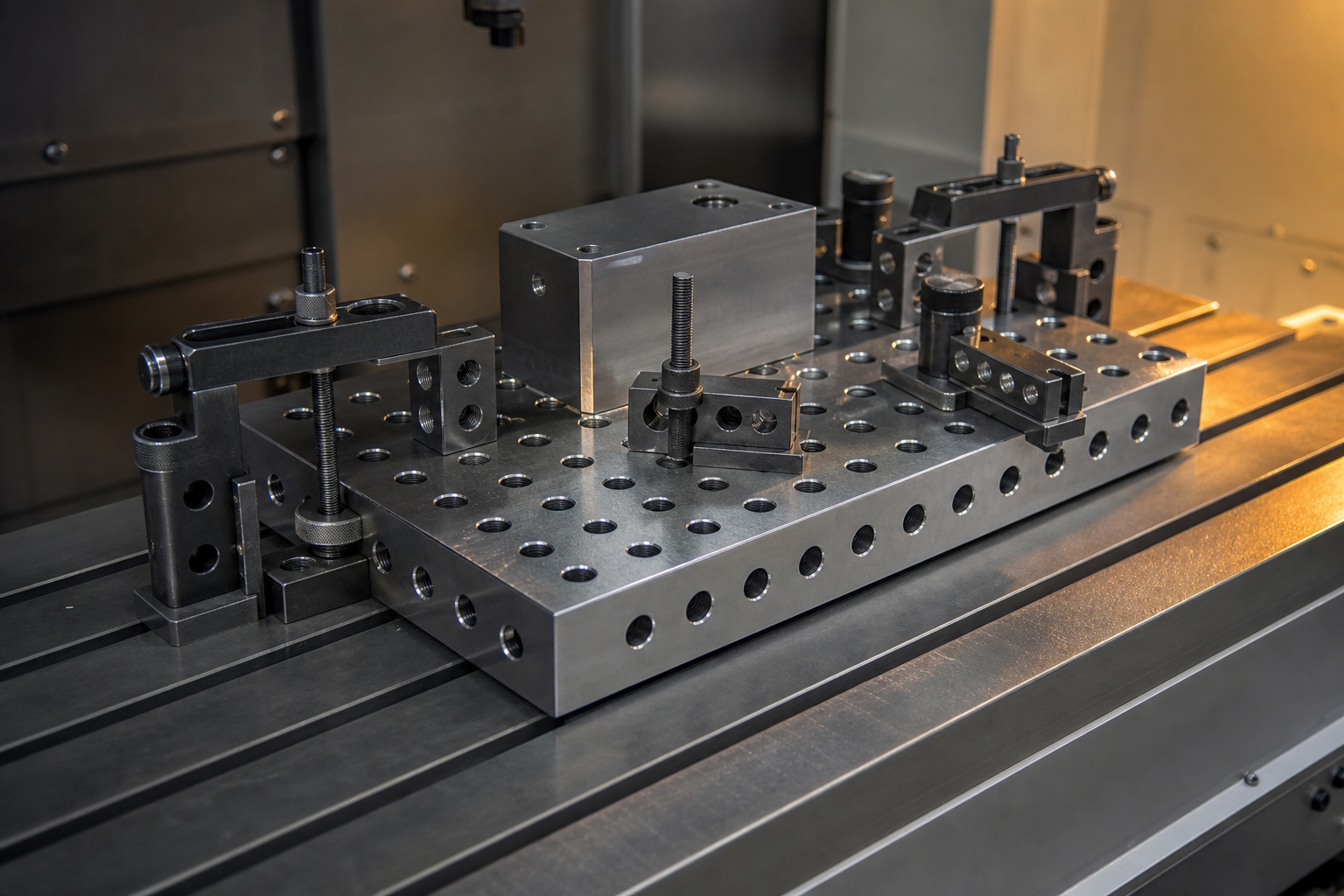

From hydraulic and pneumatic clamping systems to mechanical and prototype fixtures, SMAT delivers workholding that reduces setup time and improves repeatability on CNC machining centers. We also take on complete turnkey fixturing projects from concept to commissioning.
Key Applications
- CNC Machining
- Assembly Lines
- Quality Inspection
Materials
Range
Product Variants

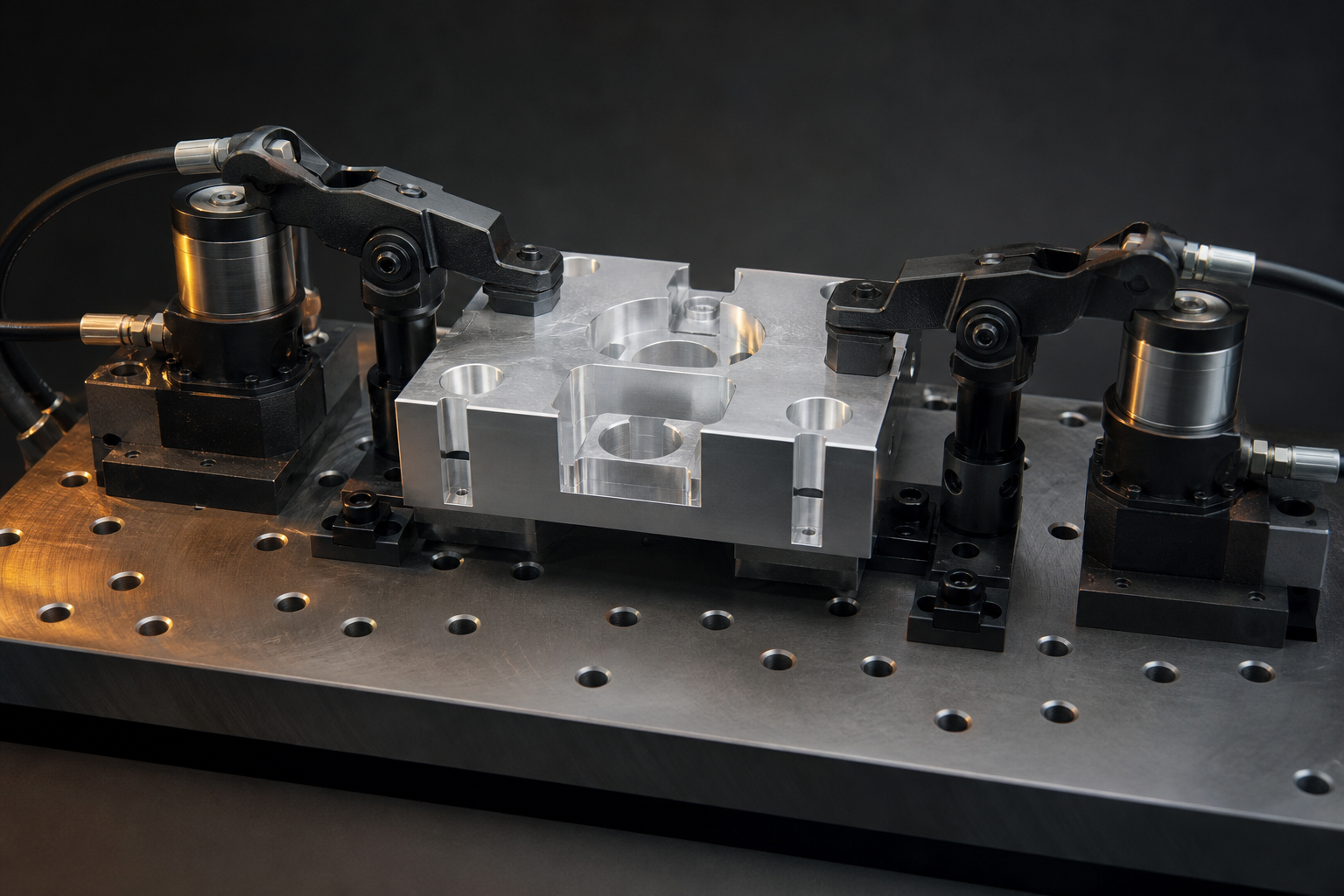

FIX-HYD
Hydraulic Fixtures
Tool Steel · High-volume automated clamping
View details →

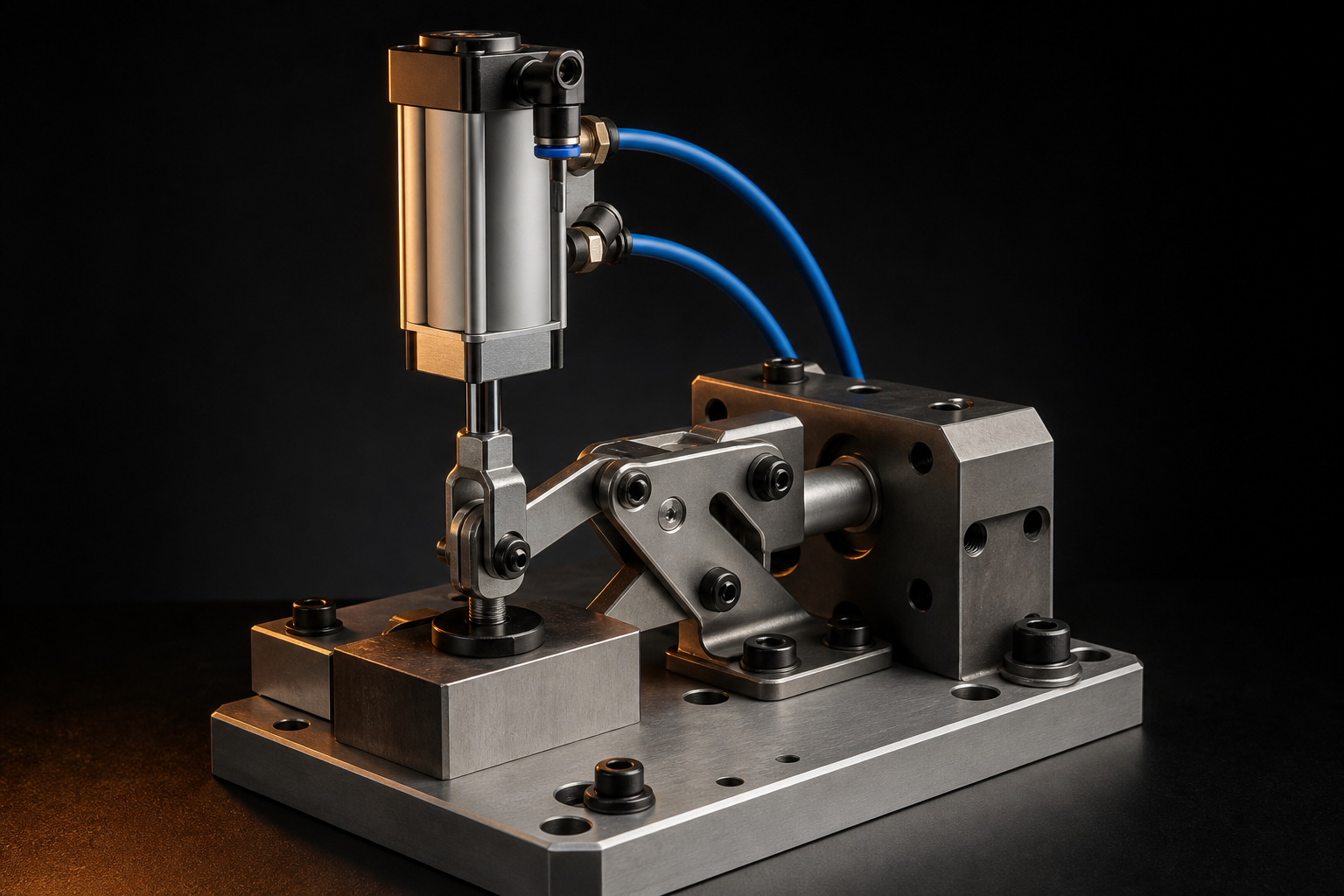

FIX-PNU
Pneumatic Fixtures
Tool Steel · Aluminum · Fast-cycle air-actuated clamping
View details →

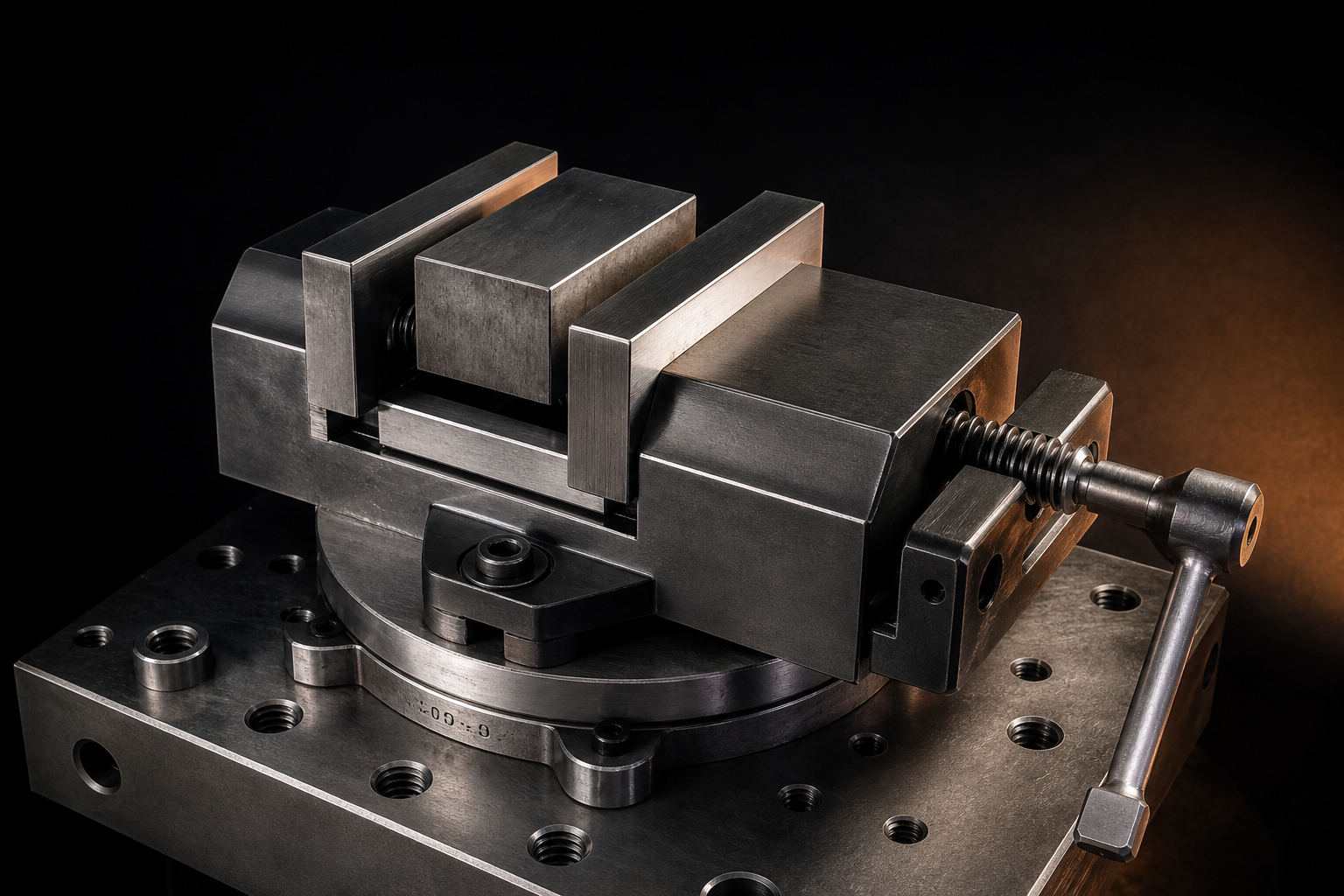

FIX-MEC
Mechanical Fixtures
Tool Steel · Manual clamping & workholding
View details →

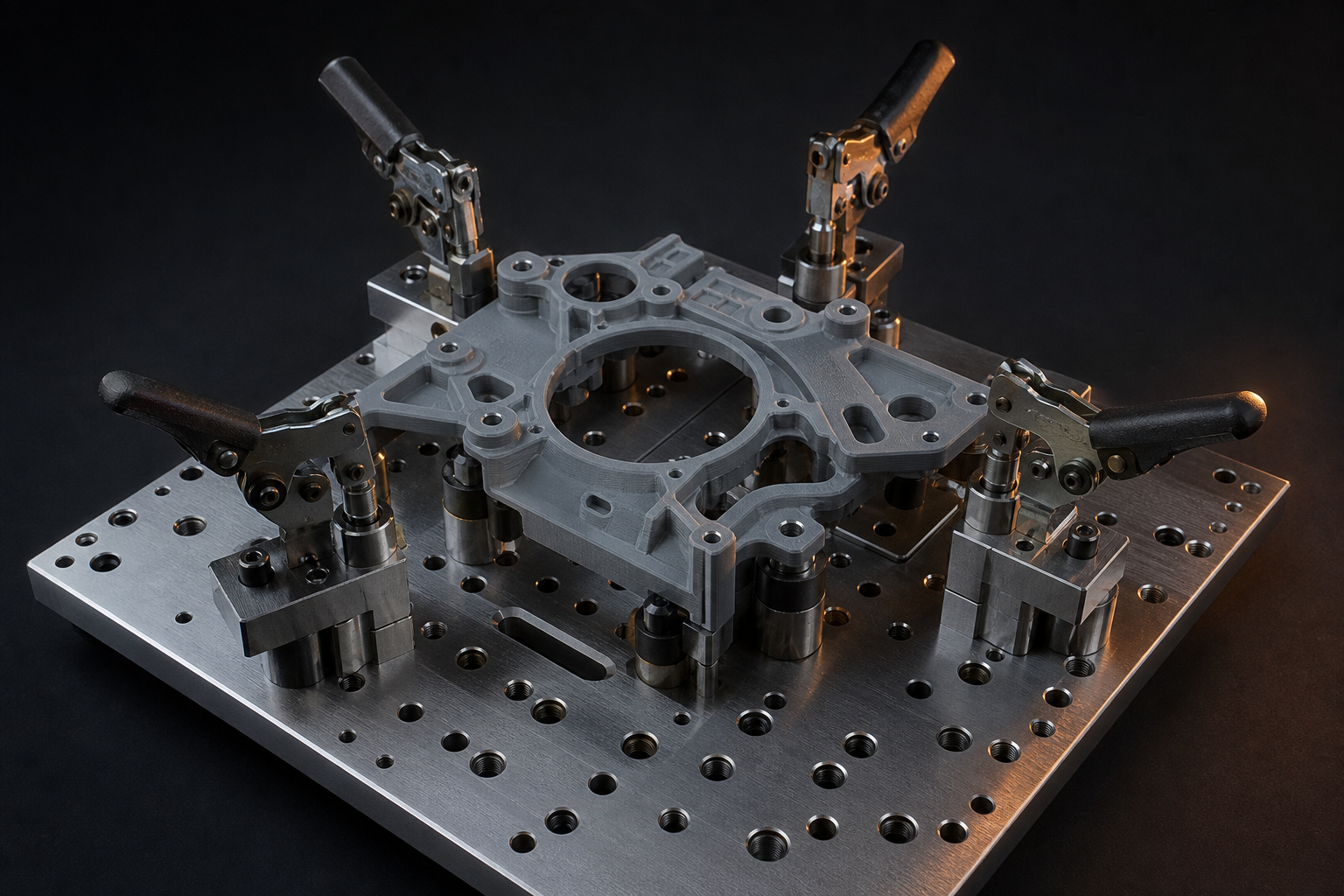

FIX-PRO
Prototype Fixtures
Per Specification · New-part validation & trials
View details →

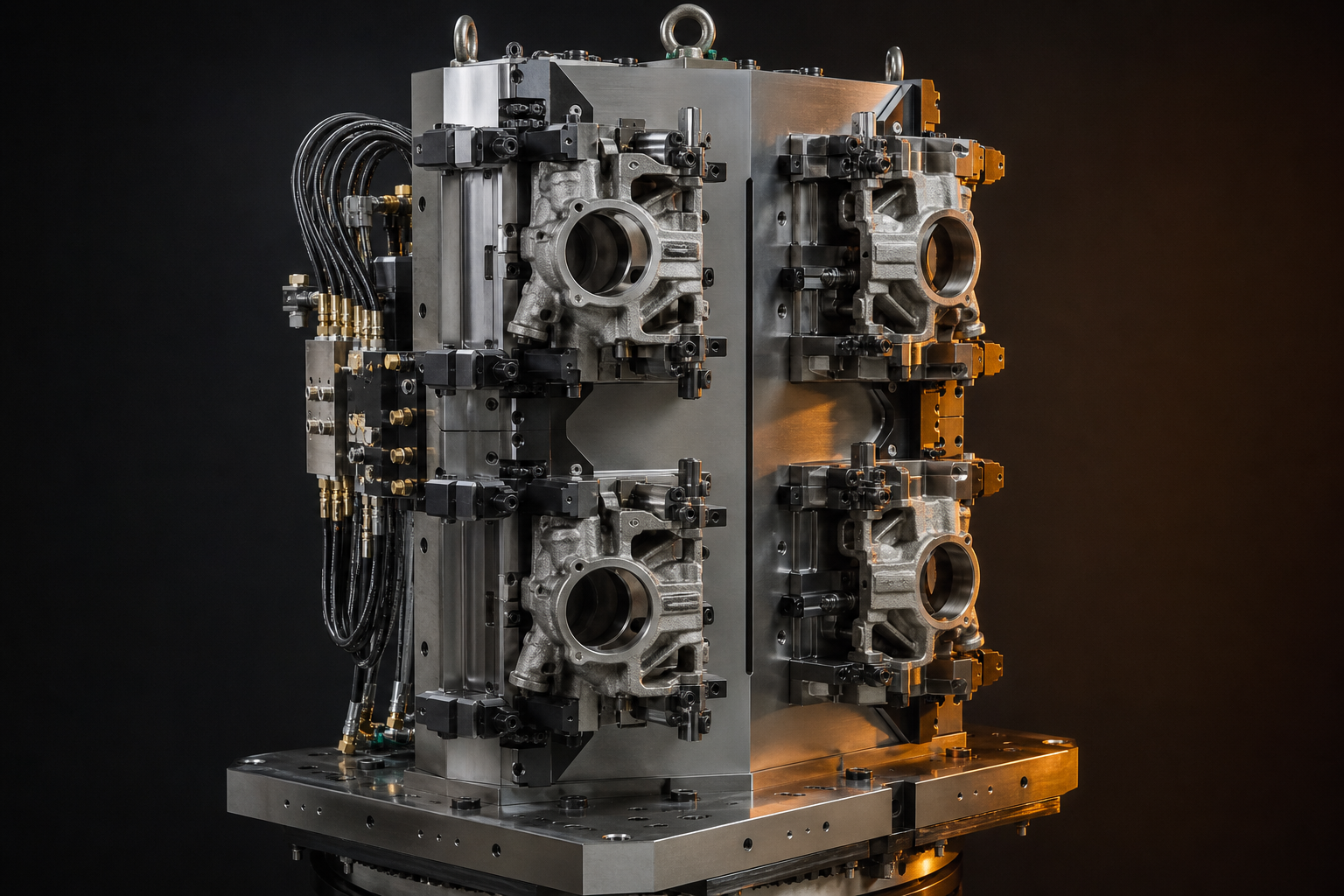

FIX-TKS
Complete Turnkey Solutions
Per Specification · Concept-to-commissioning fixturing projects
View details →Specifications
Technical Data
| Repeatability | ±0.01 mm |
| Load Capacity | Up to 500 kg |
| Surface Finish | Ra 0.8 μm |
| Customization | Full CAD-to-production |
| Lead Time | 0–8 weeks typical |
Why SMAT
Why Source Fixtures From Us
See our inspection process and the documents that ship with every order →
